- Small/Medium - $ 1,349.00
PRODUCT DETAILS

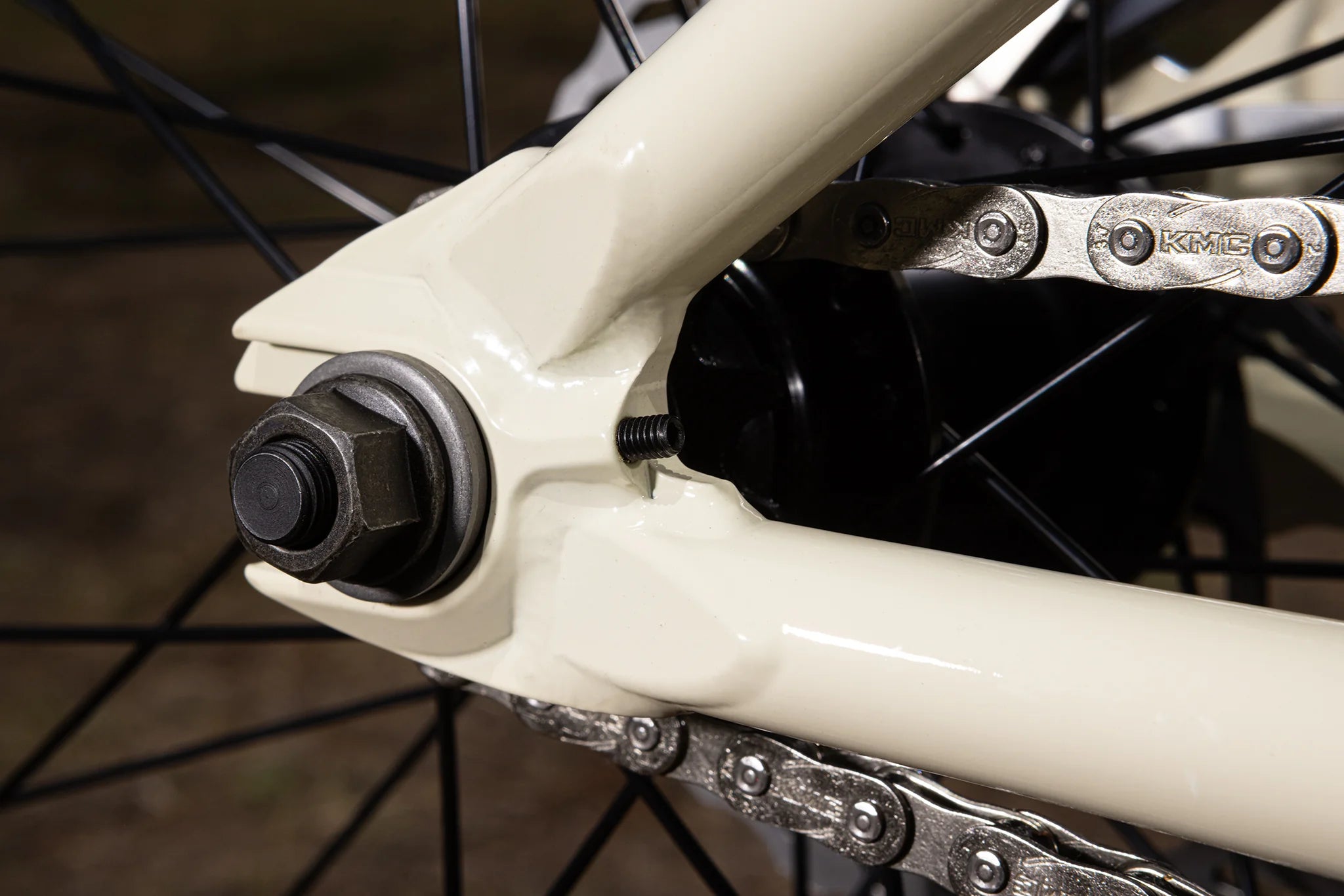

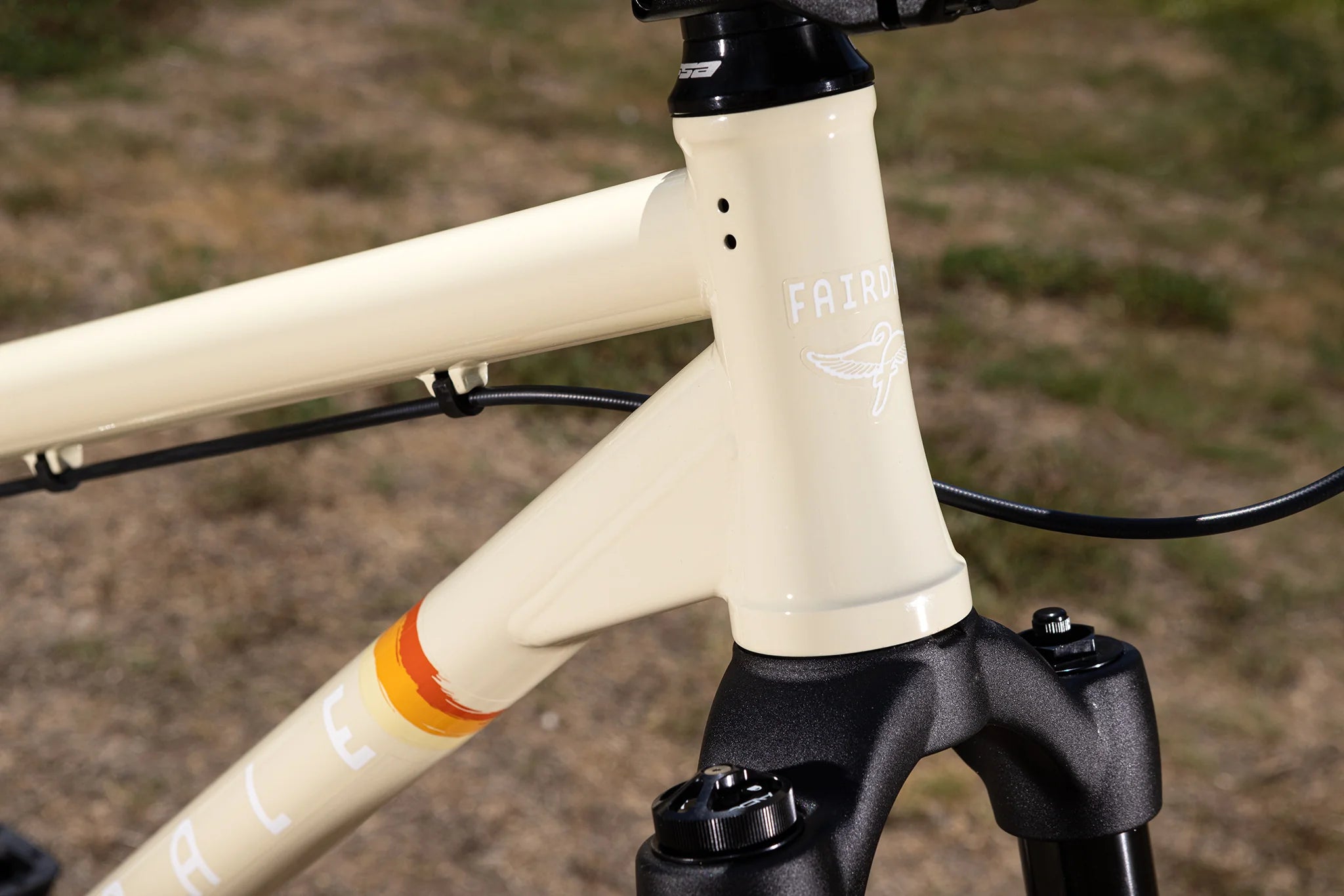

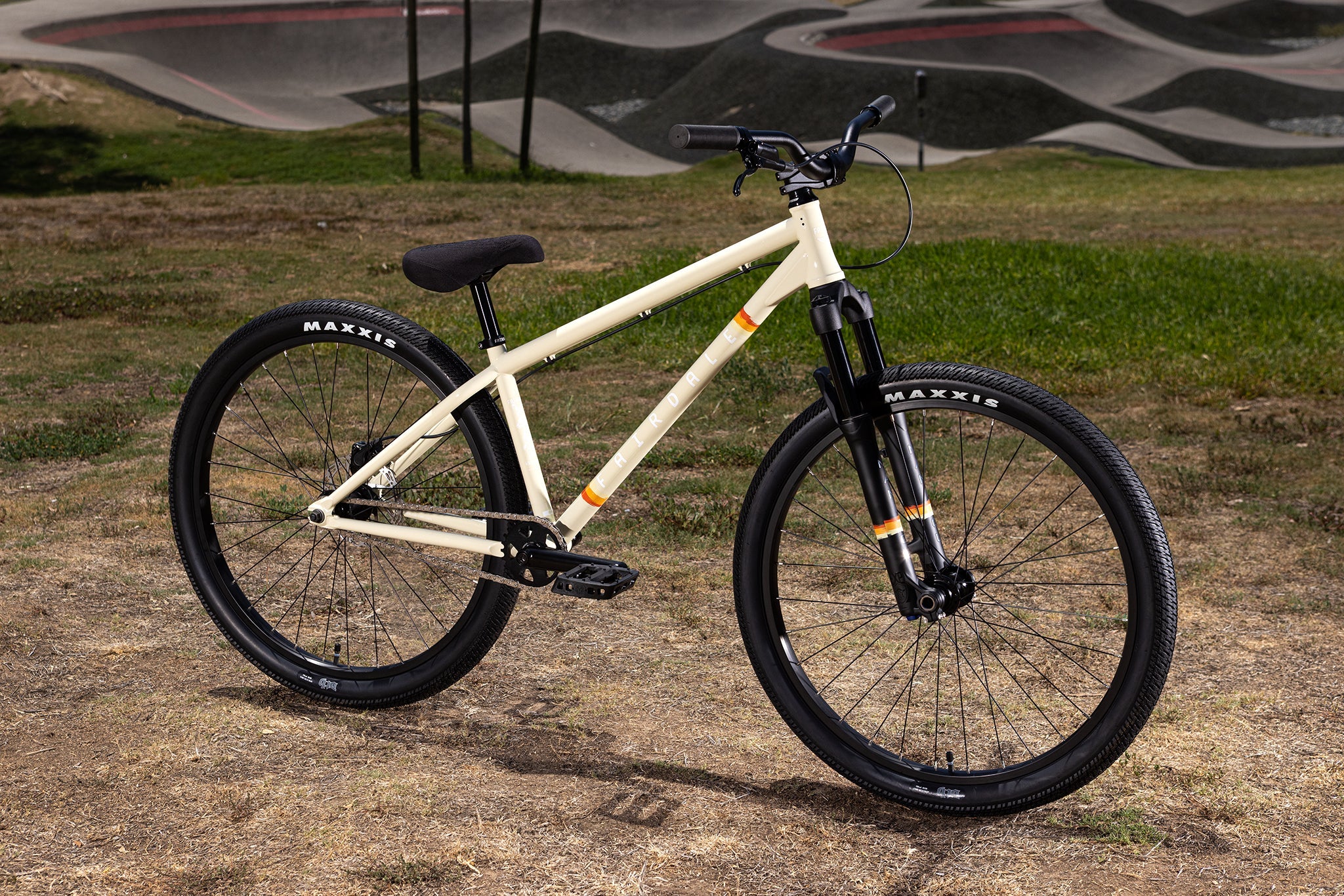

The Hareraiser is a 26” wheeled Dirt Jumper (DJ). It is made from trustworthy 100% 4130 chromoly. The frame’s lively feel comes from its ultra-short chainstays and our BMX know-how. You’ll also find integrated chain tensioners, BSA 73mm threaded bottom bracket, and a tapered 1-1/8” to 1-1/2” headtube with removable Gyro tabs.
The complete Hareraiser FX build features a tough and simple Manitou Circus Expert fork, Odyssey Big Stitch seat, Maxxis 2.3” tires, and durable 19mm, 48 spline chromoly cranks. It is ready to shred out of the box!
Sizing
Small/ Medium: 5' height and upA shorter front end means the bike can spin quicker and maneuver faster. This can also feel more natural if coming straight from a BMX bike. Rider fit is very subjective, but we’d guess you would be over 5’ tall to ride this size
Medium/Large: 5'6" height and upA longer front end means more stability, especially during high-speed dirt jumps. It can also feel more natural when stepping onto it directly from a much larger MTB trail/ enduro bike. Rider fit is very subjective, but we’d guess you would be over 5’6” to ride this size.
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
- Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount

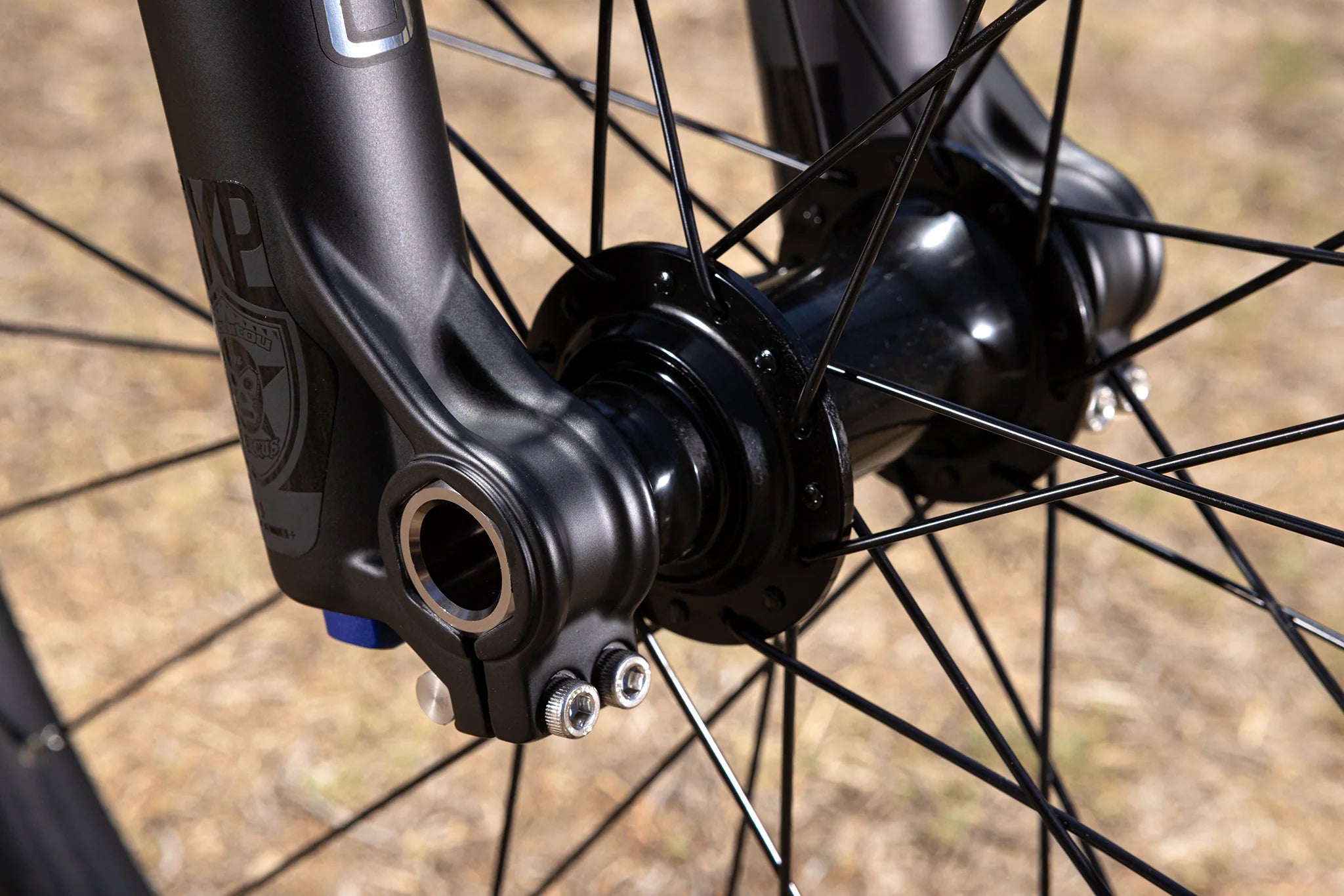

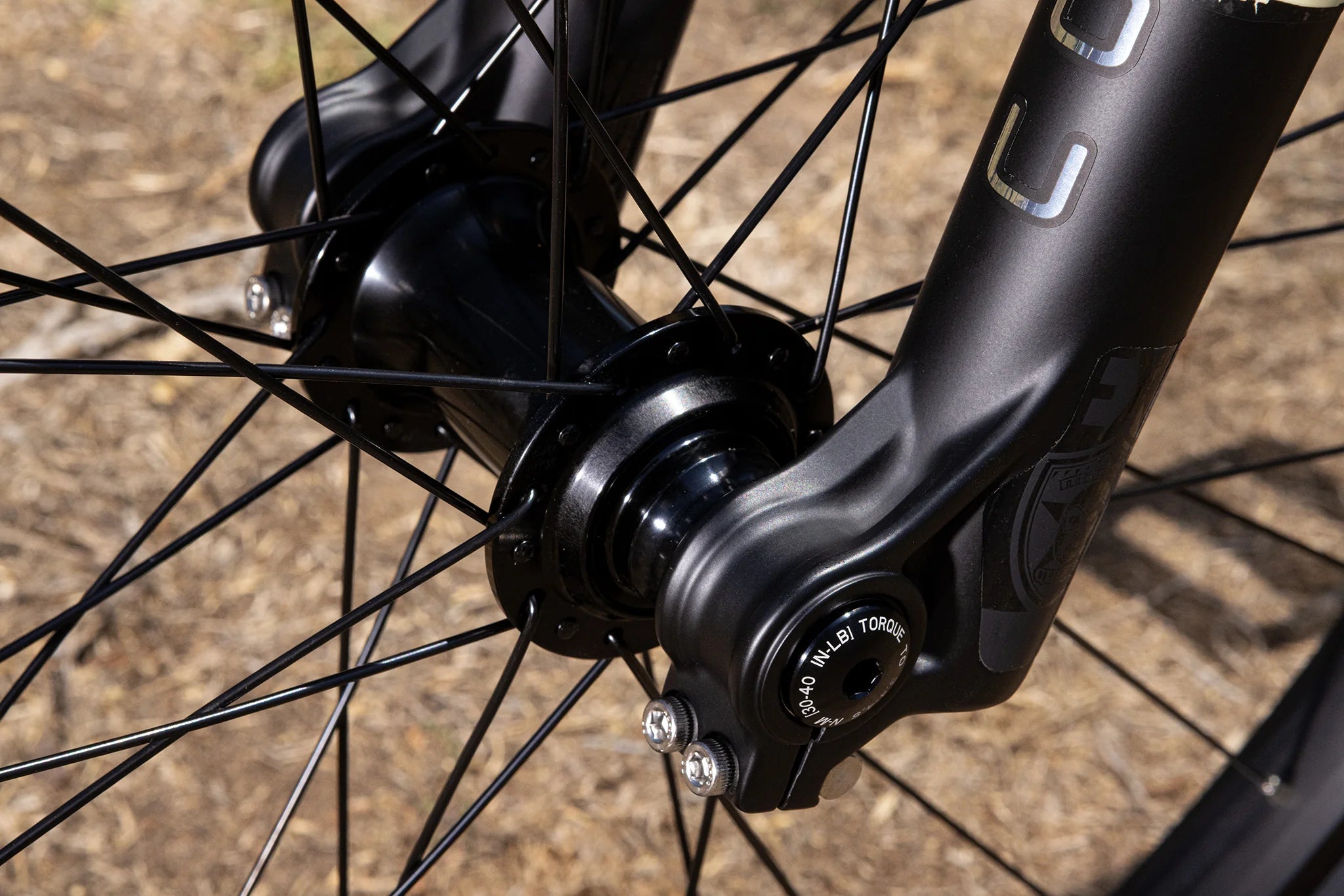

- Fork: Manitou Circus Expert, 100mm, 20mm Thru-Axle

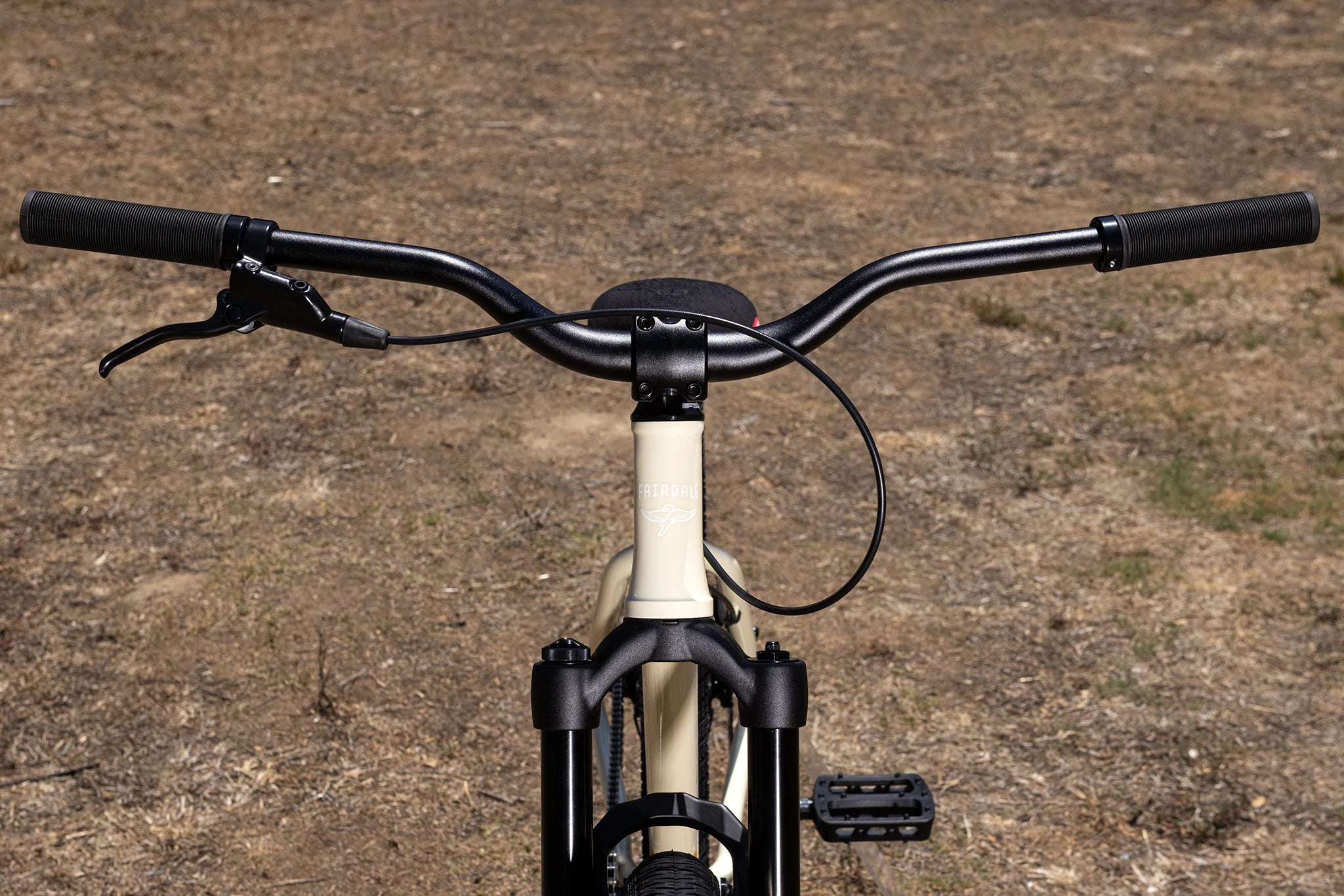

- Handlebar: 2" rise, 30" wide, 31.8mm clamp, Aluminum
- Stem: DJ 50mm, Aluminum
- Headset: FSA Orbit Sealed, Integrated
- Brake Lever: Hydraulic
- Brakes: Hydraulic
- Grips: Lock-on
- Saddle: Odyssey Big Stitch, Pivotal
- Seat Post: Pivotal, 27.2mm
- Seat Clamp: Fairdale, 30mm
- Cranks: 19mm 48-Spline, 170mm
- Chainwheel: Fairdale, 28T
- BB Parts: Euro BB, 19mm
- Pedals: Odyssey Twisted Pro PC
- Rims: 26", 32-Hole, Double Wall, Aluminum
- Front Hub: Sealed 20mm Thru Axle
- Rear Hub: Sealed Cassette, 3/8" Axle, Disc

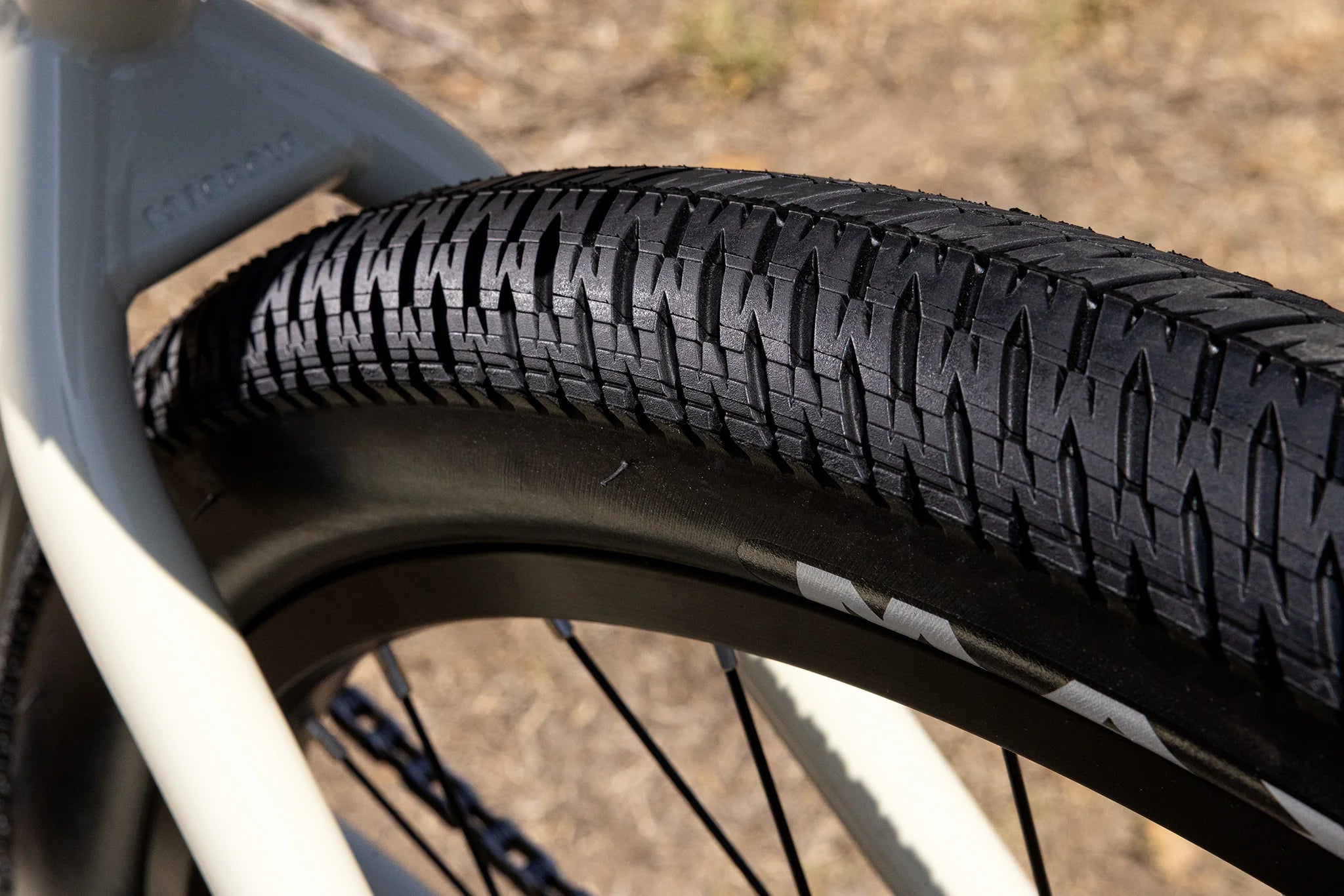

- Tires: Maxxis DTH, 26" x 2.3"
- Chain: KMC Z1eHX
- Driver: 12T
Geometry
| Build | S/M Suspension | M/L Suspension | S/M Rigid | M/L Rigid |
| Fork Travel | 100mm | 100mm | 100mm | N/A |
| Fork Axle to Crown | 482mm | 482mm | 455mm | 455mm |
| Fork Offset | 40mm | 40mm | 30mm | 30mm |
| Top Tube (Effective) | 600mm | 625mm | 600mm | 625mm |
| Seat Tube(BB Center to TT Center) | 340mm | 340mm | 340mm | 340mm |
| Seat Tube Angle | 72° | 72° | 73° | 73° |
| Head Tube Length | 120mm | 120mm | 120mm | 120mm |
| Head Tube Angle | 69.5° | 69.5° | 70.5° | 70.5° |
| Chain Stay Length | 379-389mm | 379-389mm | 379-389mm | 379-389mm |
| Standover | 690mm | 690mm | 681mm | 678mm |
| Stack | 570mm | 570mm | 562mm | 561mm |
| Reach | 415mm | 440mm | 427mm | 452mm |
| BB Drop | 20mm | 20mm | 28mm | 28mm |
| Rear Dropout Spacing | 10x135mm | 10x135mm | 10x135mm | 10x135mm |
| BB Type | 73mm threaded | 73mm threaded | 73mm threaded | 73mm threaded |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Rear Tire Clearance | 2.3" | 2.3" | 2.3" | 2.3" |
| Wheel Size | 26" | 26" | 26" | 26" |
