Verde Radix DLX Dirt Jumper 26" Complete Bike - Black

  • $ 999.99


The Radix DLX features stepped up spec from the regular Radix. Assembled at Verde in Ohio, the DLX is built on the same 4130 chromoly Radix frame, but with a better fork, bars, tires, and sprocket. The Manitou Circus Expert 100mm air fork is lighter, provides more adjustment, and is spec’d with a 20mm front thru-axle. At $450 retail, this fork alone more than covers the cost of upgrading to the DLX. Other improvements include Pro Taper Stealth bars, Kenda 3-Sixty tires, and a US made Verde Neutra sprocket that steps the gear ratio up to 27-12T.


Frame Spec

  • Frame: 100% chromoly w/ CNC machined integrated head tube, Mid BB, top and down tube gussets w/ Verde logo
  • Top Tube Length: 22.34” (23.22” effective)
  • Chain Stay Length 15.3”
  • Head Tube Angle 69º
  • Seat Tube Angle 71º
  • Bottom Bracket Height 13”
  • Standover Height: 10”

Parts Spec

  • Fork: Manitou Circus Expert, 100mm travel, 41mm offset, 1.5” taper

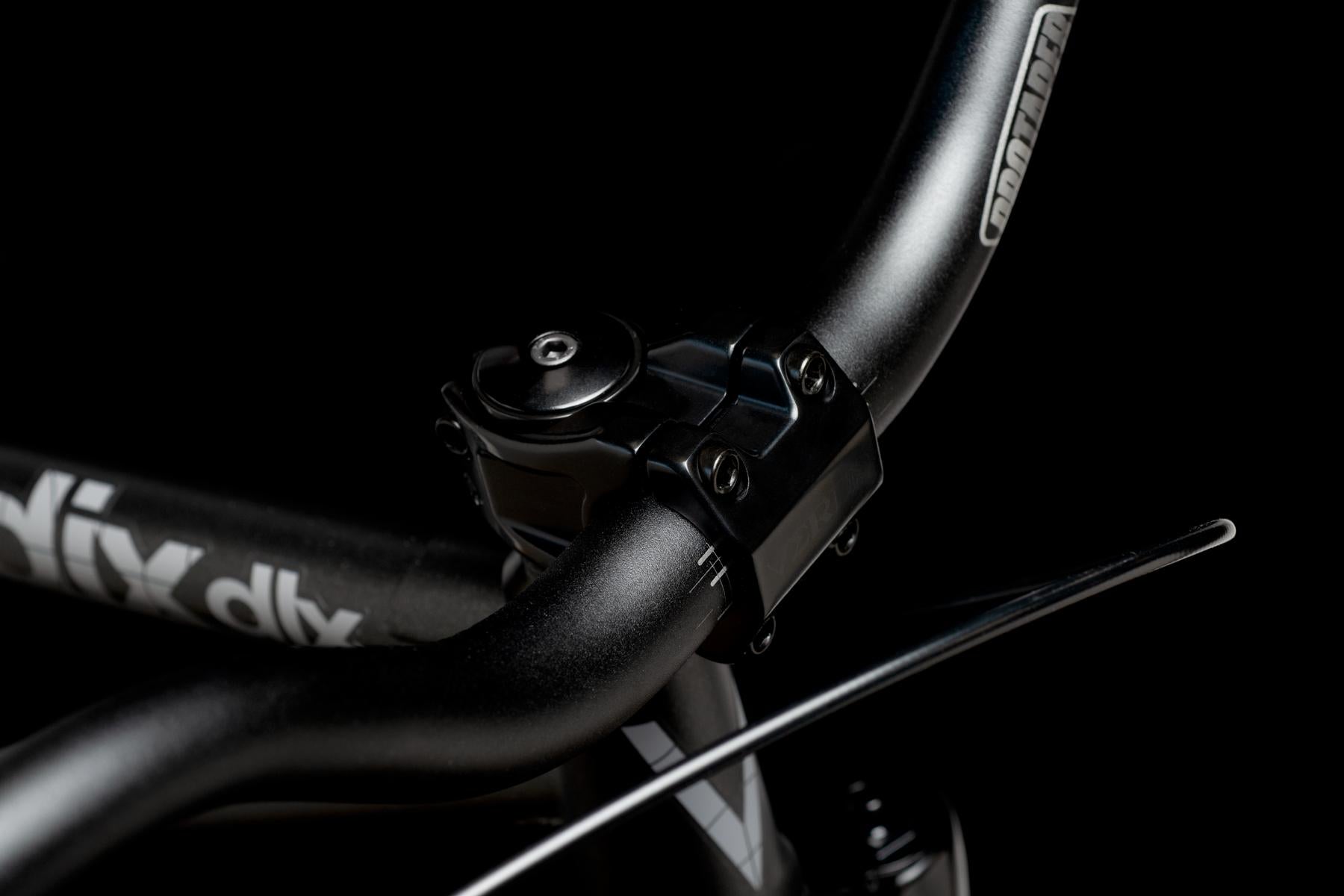

  • Bars: Pro-Taper Stealth, 6061 aluminum, 3” rise, 29.5” wide, 31.8mm clamping area
  • Stem: Front load, 42mm reach
  • Headset: Sealed integrated, 1-1/8” to 1-1/2” tapered
  • Brake: Tektro Aires mechanical disc w/ 160mm rotor
  • Lever: Tektro, 2-finger design
  • Rear Hub Alloy, fully sealed, 10mm (3/8”) axle, 12-tooth driver
  • Front Hub: Alloy, fully sealed, 20mm thru-axle
  • Sprocket: Verde Neutra, 27-tooth, CNC machined 6061 aluminum — Made in USA
  • Cranks: Tubular chromoly 3-piece, 175mm
  • BB: 19mm sealed Mid
  • Chain: PYC Z-510, black
  • Pedals: DUO Brand Resilite platform
  • Front Rim: 6061 aluminum, double wall, 32-hole
  • Rear Rim: 6061 aluminum, double wall, 32-hole
  • Spokes: Black w/ silver nipples
  • Front Tire: 26 x 2.25” Kenda 3-Sixty, 65psi
  • Rear Tire: 26 x 2.25” Kenda 3-Sixty, 65psi
  • Seat: Verde Branch w/ integrated post
  • Seat Post: Uni-style, integrated, alloy, 27.2mm diameter, 175mm length
  • Seat Clamp: Alloy, quick-release
  • Grips: DUO Brand Homan flangeless grips w/ DUO Resilite bar ends
  • Weight: 30.4 lbs
